Applying refutation tests to the Lalonde and IHDP datasets

Import the Dependencies

[1]:
import dowhy
from dowhy import CausalModel
import pandas as pd
import numpy as np

# Config dict to set the logging level
import logging.config
DEFAULT_LOGGING = {
    'version': 1,
    'disable_existing_loggers': False,
    'loggers': {
        '': {
            'level': 'WARN',
        },
    }
}

logging.config.dictConfig(DEFAULT_LOGGING)
# Disabling warnings output
import warnings
from sklearn.exceptions import DataConversionWarning
warnings.filterwarnings(action='ignore', category=DataConversionWarning)

Loading the Dataset

Infant Health and Development Program Dataset (IHDP)

The measurements used are on the child—birth weight, head circumference, weeks bornpreterm, birth order, first born, neonatal health index (see Scott and Bauer 1989), sex, twinstatus—as well as behaviors engaged in during the pregnancy—smoked cigarettes, drankalcohol, took drugs—and measurements on the mother at the time she gave birth—age,marital status, educational attainment (did not graduate from high school, graduated fromhigh school, attended some college but did not graduate, graduated from college), whethershe worked during pregnancy, whether she received prenatal care—and the site (8 total) inwhich the family resided at the start of the intervention. There are 6 continuous covariatesand 19 binary covariates.

Reference

Hill, J. L. (2011). Bayesian nonparametric modeling for causal inference. Journal of Computational and Graphical Statistics, 20(1), 217-240. https://doi.org/10.1198/jcgs.2010.08162

[2]:
data = pd.read_csv("https://raw.githubusercontent.com/AMLab-Amsterdam/CEVAE/master/datasets/IHDP/csv/ihdp_npci_1.csv", header = None)
col =  ["treatment", "y_factual", "y_cfactual", "mu0", "mu1" ,]
for i in range(1,26):
    col.append("x"+str(i))
data.columns = col
data = data.astype({"treatment":'bool'}, copy=False)
data.head()
[2]:
treatment y_factual y_cfactual mu0 mu1 x1 x2 x3 x4 x5 ... x16 x17 x18 x19 x20 x21 x22 x23 x24 x25
0 True 5.599916 4.318780 3.268256 6.854457 -0.528603 -0.343455 1.128554 0.161703 -0.316603 ... 1 1 1 1 0 0 0 0 0 0
1 False 6.875856 7.856495 6.636059 7.562718 -1.736945 -1.802002 0.383828 2.244320 -0.629189 ... 1 1 1 1 0 0 0 0 0 0
2 False 2.996273 6.633952 1.570536 6.121617 -0.807451 -0.202946 -0.360898 -0.879606 0.808706 ... 1 0 1 1 0 0 0 0 0 0
3 False 1.366206 5.697239 1.244738 5.889125 0.390083 0.596582 -1.850350 -0.879606 -0.004017 ... 1 0 1 1 0 0 0 0 0 0
4 False 1.963538 6.202582 1.685048 6.191994 -1.045229 -0.602710 0.011465 0.161703 0.683672 ... 1 1 1 1 0 0 0 0 0 0

5 rows × 30 columns

Lalonde Dataset

A data frame with 445 observations on the following 12 variables.

  • age: age in years.

  • educ: years of schooling.

  • black: indicator variable for blacks.

  • hisp: indicator variable for Hispanics.

  • married: indicator variable for martial status.

  • nodegr: indicator variable for high school diploma.

  • re74: real earnings in 1974.

  • re75: real earnings in 1975.

  • re78: real earnings in 1978.

  • u74: indicator variable for earnings in 1974 being zero.

  • u75: indicator variable for earnings in 1975 being zero.

  • treat: an indicator variable for treatment status.

References

Dehejia, Rajeev and Sadek Wahba. 1999.``Causal Effects in Non-Experimental Studies: Re-Evaluating the Evaluation of Training Programs.’’ Journal of the American Statistical Association 94 (448): 1053-1062.

LaLonde, Robert. 1986. ``Evaluating the Econometric Evaluations of Training Programs.’’ American Economic Review 76:604-620.

[3]:
import dowhy.datasets

lalonde = dowhy.datasets.lalonde_dataset()

lalonde.head()
[3]:
treat age educ black hisp married nodegr re74 re75 re78 u74 u75
0 False 23.0 10.0 1.0 0.0 0.0 1.0 0.0 0.0 0.00 1.0 1.0
1 False 26.0 12.0 0.0 0.0 0.0 0.0 0.0 0.0 12383.68 1.0 1.0
2 False 22.0 9.0 1.0 0.0 0.0 1.0 0.0 0.0 0.00 1.0 1.0
3 False 18.0 9.0 1.0 0.0 0.0 1.0 0.0 0.0 10740.08 1.0 1.0
4 False 45.0 11.0 1.0 0.0 0.0 1.0 0.0 0.0 11796.47 1.0 1.0

Step 1: Building the model

IHDP

[4]:
# Create a causal model from the data and given common causes

common_causes = []

for i in range(1, 26):
    common_causes += ["x"+str(i)]

ihdp_model = CausalModel(
                data=data,
                treatment='treatment',
                outcome='y_factual',
                common_causes=common_causes
            )

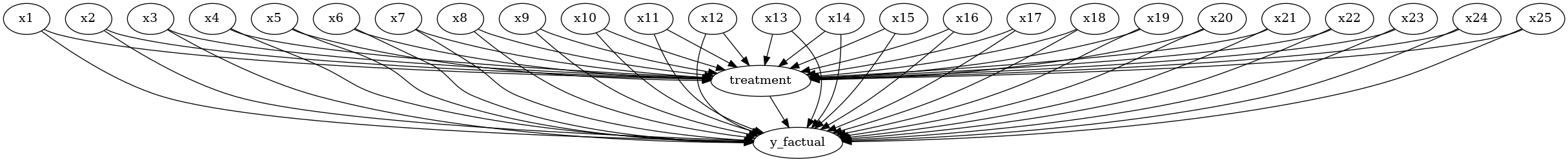

ihdp_model.view_model(layout="dot")
from IPython.display import Image, display
display(Image(filename="causal_model.png"))
../_images/example_notebooks_dowhy_refutation_testing_12_0.png
../_images/example_notebooks_dowhy_refutation_testing_12_1.png

Lalonde

[5]:
lalonde_model = CausalModel(
                data=lalonde,
                treatment='treat',
                outcome='re78',
                common_causes='nodegr+black+hisp+age+educ+married'.split('+')
            )

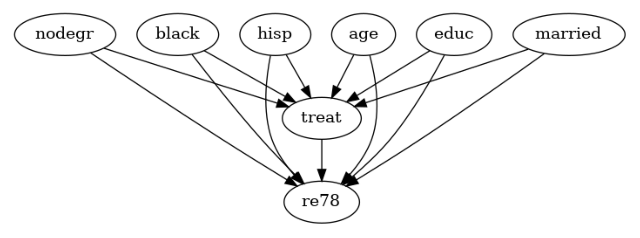

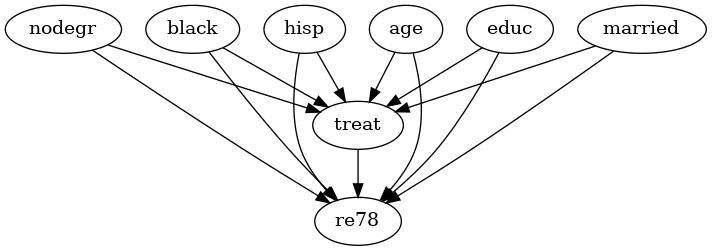

lalonde_model.view_model(layout="dot")
from IPython.display import Image, display
display(Image(filename="causal_model.png"))
../_images/example_notebooks_dowhy_refutation_testing_14_0.png
../_images/example_notebooks_dowhy_refutation_testing_14_1.png

Step 2: Identification

IHDP

[6]:
#Identify the causal effect for the ihdp dataset
ihdp_identified_estimand = ihdp_model.identify_effect(proceed_when_unidentifiable=True)
print(ihdp_identified_estimand)
Estimand type: EstimandType.NONPARAMETRIC_ATE

### Estimand : 1
Estimand name: backdoor
Estimand expression:
     d
────────────(E[y_factual|x24,x10,x16,x23,x4,x17,x19,x21,x15,x18,x25,x20,x3,x12
d[treatment]


,x22,x1,x2,x6,x8,x11,x7,x13,x14,x9,x5])

Estimand assumption 1, Unconfoundedness: If U→{treatment} and U→y_factual then P(y_factual|treatment,x24,x10,x16,x23,x4,x17,x19,x21,x15,x18,x25,x20,x3,x12,x22,x1,x2,x6,x8,x11,x7,x13,x14,x9,x5,U) = P(y_factual|treatment,x24,x10,x16,x23,x4,x17,x19,x21,x15,x18,x25,x20,x3,x12,x22,x1,x2,x6,x8,x11,x7,x13,x14,x9,x5)

### Estimand : 2
Estimand name: iv
No such variable(s) found!

### Estimand : 3
Estimand name: frontdoor
No such variable(s) found!

Lalonde

[7]:
#Identify the causal effect for the lalonde dataset
lalonde_identified_estimand = lalonde_model.identify_effect(proceed_when_unidentifiable=True)
print(lalonde_identified_estimand)
Estimand type: EstimandType.NONPARAMETRIC_ATE

### Estimand : 1
Estimand name: backdoor
Estimand expression:
   d
────────(E[re78|hisp,age,black,nodegr,educ,married])
d[treat]
Estimand assumption 1, Unconfoundedness: If U→{treat} and U→re78 then P(re78|treat,hisp,age,black,nodegr,educ,married,U) = P(re78|treat,hisp,age,black,nodegr,educ,married)

### Estimand : 2
Estimand name: iv
No such variable(s) found!

### Estimand : 3
Estimand name: frontdoor
No such variable(s) found!

Step 3: Estimation (using propensity score weighting)

IHDP

[8]:
ihdp_estimate = ihdp_model.estimate_effect(
                    ihdp_identified_estimand,
                    method_name="backdoor.propensity_score_weighting"
                )

print("The Causal Estimate is " + str(ihdp_estimate.value))
The Causal Estimate is 4.028748218390172

Lalonde

[9]:
lalonde_estimate = lalonde_model.estimate_effect(
                        lalonde_identified_estimand,
                        method_name="backdoor.propensity_score_weighting"
                    )

print("The Causal Estimate is " + str(lalonde_estimate.value))
The Causal Estimate is 1639.8000313649254

Step 4: Refutation

IHDP

Add Random Common Cause

[10]:
ihdp_refute_random_common_cause = ihdp_model.refute_estimate(
                                        ihdp_identified_estimand,
                                        ihdp_estimate,
                                        method_name="random_common_cause"
                                    )

print(ihdp_refute_random_common_cause)
Refute: Add a random common cause
Estimated effect:4.028748218390172
New effect:4.02874821839017
p value:1.0

Replace Treatment with Placebo

[11]:
ihdp_refute_placebo_treatment = ihdp_model.refute_estimate(
                                    ihdp_identified_estimand,
                                    ihdp_estimate,
                                    method_name="placebo_treatment_refuter",
                                    placebo_type="permute"
                                )

print(ihdp_refute_placebo_treatment)
Refute: Use a Placebo Treatment
Estimated effect:4.028748218390172
New effect:-0.501972917922185
p value:0.0

Remove Random Subset of Data

[12]:
ihdp_refute_random_subset = ihdp_model.refute_estimate(
                                    ihdp_identified_estimand,
                                    ihdp_estimate,
                                    method_name="data_subset_refuter",
                                    subset_fraction=0.8
                            )
print(ihdp_refute_random_subset)
Refute: Use a subset of data
Estimated effect:4.028748218390172
New effect:4.030172100680767
p value:0.98

Lalonde

Add Random Common Cause

[13]:
lalonde_refute_random_common_cause = lalonde_model.refute_estimate(
                                            lalonde_identified_estimand,
                                            lalonde_estimate,
                                            method_name="random_common_cause"
                                        )

print(lalonde_refute_random_common_cause)
Refute: Add a random common cause
Estimated effect:1639.8000313649254
New effect:1639.8000313649247
p value:1.0

Replace Treatment with Placebo

[14]:
lalonde_refute_placebo_treatment = lalonde_model.refute_estimate(
                                        lalonde_identified_estimand,
                                        lalonde_estimate,
                                        method_name="placebo_treatment_refuter",
                                        placebo_type="permute"
                                    )

print(lalonde_refute_placebo_treatment)
Refute: Use a Placebo Treatment
Estimated effect:1639.8000313649254
New effect:-109.0167320536742
p value:0.82

Remove Random Subset of Data

[15]:
lalonde_refute_random_subset = lalonde_model.refute_estimate(
                                    lalonde_identified_estimand,
                                    lalonde_estimate,
                                    method_name="data_subset_refuter",
                                    subset_fraction=0.9
                                )

print(lalonde_refute_random_subset)
Refute: Use a subset of data
Estimated effect:1639.8000313649254
New effect:1609.521291796222
p value:0.94
